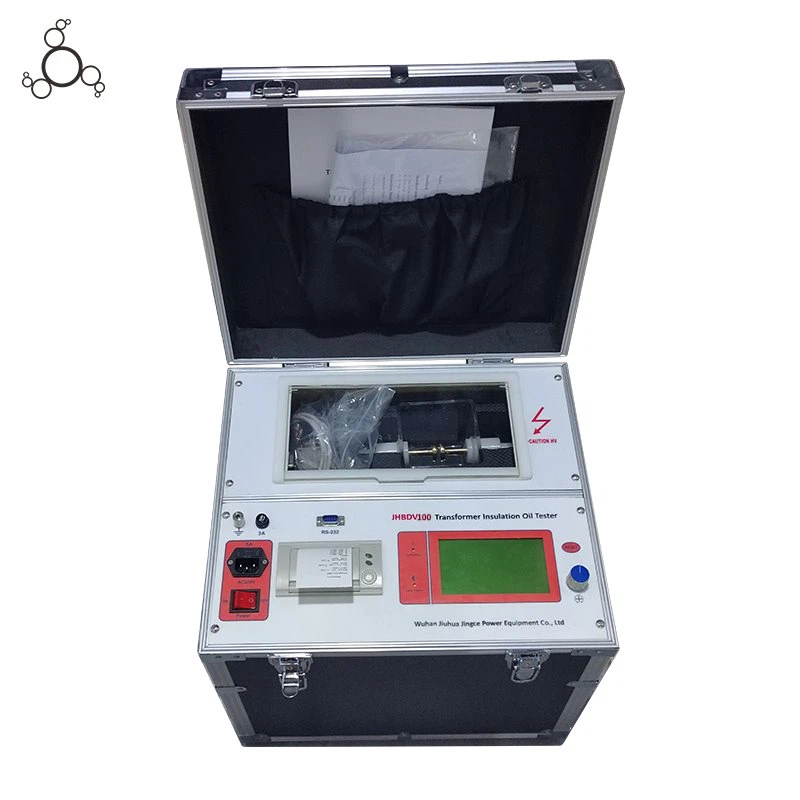

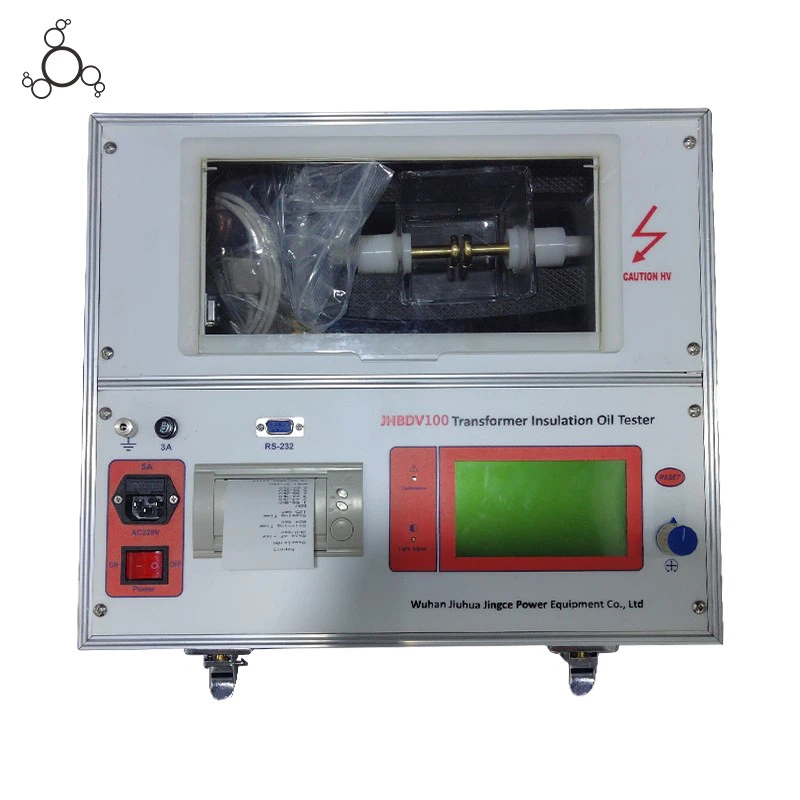

The JHBDV100 is a professional transformer oil withstand tester designed for the breakdown voltage test of transformer oil, which is an essential device for power equipment insulation testing. With an output voltage range of 0~100kV AC and a voltage rise rate of 2kV/s±10%, it accurately meets the testing requirements of transformer oil insulation performance.

The JHBDV100 transformer oil BDV tester is specialized in measuring the breakdown voltage of insulating oil, providing reliable data support for judging the insulation state of transformer oil. It supports three test modes: IEC156/IS6792/BS5874 standard test, user-defined test, and proof test, meeting various test requirements in different scenarios. The instrument features a maximum test count of 9 times, adjustable stirring time and waiting time (0~999s), and a test error of no more than 3% within 10~100kV, ensuring high-precision test results. With a compact structure, a weight of 28kg, and a size of 420×380×410mm, it is easy to carry and operate on-site. It also supports data saving, printing, and PC connection upload, making it an ideal testing instrument for power plants, substations, and power testing institutions.

	JHBDV80
	AC 0~80KV
	2KV/s±10%
	3%RDG+0.3%FS
	1~9
	0~99 second
	0-9 minute 59second
	100 groups of test data
	IEC60156
	256*128 LCD
	AC 220V±10% 50Hz/60Hz
	0-50℃
	<=80%RH
	420×380×410mm3
	28kg
	1
